Example Usage

I will illustrate the usage of the ‘FuzzBALL Ghidra Script’ to address a specific challenge. To follow along, download the ‘crackme0x05’ binary from this link. Visit the page and download the tar file. Extract the contents of the tar file to obtain the ‘bin-linux’ folder (there will be other folders as well). Within this folder, locate the ‘crackme0x05’ binary.

Once you have obtained the binary, let’s import it into Ghidra. If you’re new to Ghidra, it will prompt you to create a project folder; simply choose the default options and assign a name to the folder. Afterward, you can import the binary you intend to analyze.

From the top menu bar, click on File and then select Import File. Choose the binary and click on the binary in the screen, as illustrated below:

Select ‘Yes’ when prompted to ‘Analyze the binary’.

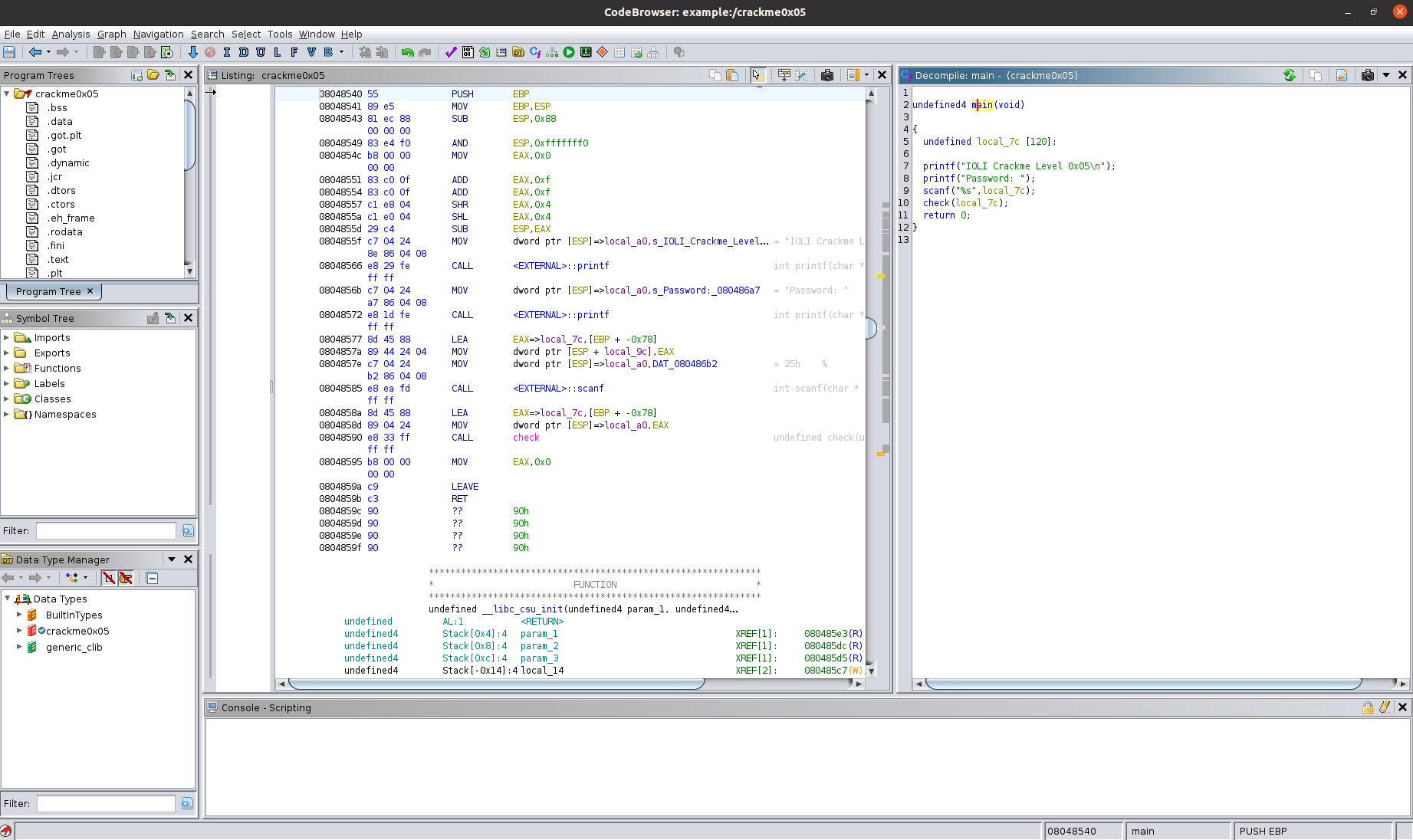

Ghidra will begin decompiling the binary, displaying both the disassembly version and the decompiled version:

Let’s examine the decompiled code and determine where we want to inject the symbolic value. Unsure about where to inject? If you’re new to symbolic execution, consider searching for information on symbolic execution to grasp the concept.

The decompiled code looks like this:

undefined4 main(void)

{
  undefined local_7c [120];

  printf("IOLI Crackme Level 0x05\n");
  printf("Password: ");
  scanf("%s",local_7c);
  check(local_7c);
  return 0;
}

It appears that scanf takes user input from the command line and passes it to the check function.

Upon double-clicking the check function, Ghidra will display the decompiled code of the function:

void check(char *param_1)

{
  size_t sVar1;
  char local_11;
  uint local_10;
  int local_c;
  int local_8;

  local_c = 0;
  local_10 = 0;
  while( true ) {
    sVar1 = strlen(param_1);
    if (sVar1 <= local_10) break;
    local_11 = param_1[local_10];
    sscanf(&local_11,"%d",&local_8);
    local_c = local_c + local_8;
    if (local_c == 0x10) {
      parell(param_1);
    }
    local_10 = local_10 + 1;
  }
  printf("Password Incorrect!\n");
  return;
}

Here, param_1 is the same as local_7c from the main function. Inside the while loop, parell(param_1) is called. Let’s examine the parell function:

void parell(char *param_1)

{
  uint local_8;

  sscanf(param_1,"%d",&local_8);
  if ((local_8 & 1) == 0) {
    printf("Password OK!\n");
                    /* WARNING: Subroutine does not return */
    exit(0);
  }
  return;
}

Once again, param_1 (possibly modified local_7) is passed into this function, and this is the point where we want the execution path to reach. Manually analyzing all the function calls may take time, so our approach will be to pass the symbolic value to the initial local_7 so that FuzzBALL can deduce and guide the execution path.

TODO: explain where to look at from the disassembly code

To initiate symbolic injection, target the following code snippet within the main function:

undefined4 main(void)

{
  undefined local_7c [120];

  printf("IOLI Crackme Level 0x05\n");
  printf("Password: ");
  scanf("%s",local_7c);
  check(local_7c);  // <--- ** inject the symbolic value here **
  return 0;
}

Examine the disassembly by clicking on the check function in Ghidra. The corresponding assembly code should be highlighted:

08048577 8d 45 88        LEA        EAX=>local_7c,[EBP + -0x78]
0804857a 89 44 24 04     MOV        dword ptr [ESP + local_9c],EAX
0804857e c7 04 24        MOV        dword ptr [ESP]=>local_a0,DAT_080486b2           = 25h    %
            b2 86 04 08
08048585 e8 ea fd        CALL       <EXTERNAL>::scanf                                int scanf(char * __format, ...)
            ff ff
0804858a 8d 45 88        LEA        EAX=>local_7c,[EBP + -0x78]
0804858d 89 04 24        MOV        dword ptr [ESP]=>local_a0,EAX
08048590 e8 33 ff        CALL       check                                            undefined check(undefined4 param
            ff ff
08048595 b8 00 00        MOV        EAX,0x0
            00 00
0804859a c9              LEAVE
0804859b c3              RET

You can see the instruction CALL <EXTERNAL>::scanf. The subsequent instructions set up the EAX register before calling the check function. Knowing the x86 function call conventions can help a lot here, especially since this is a 32-bit compiled binary.

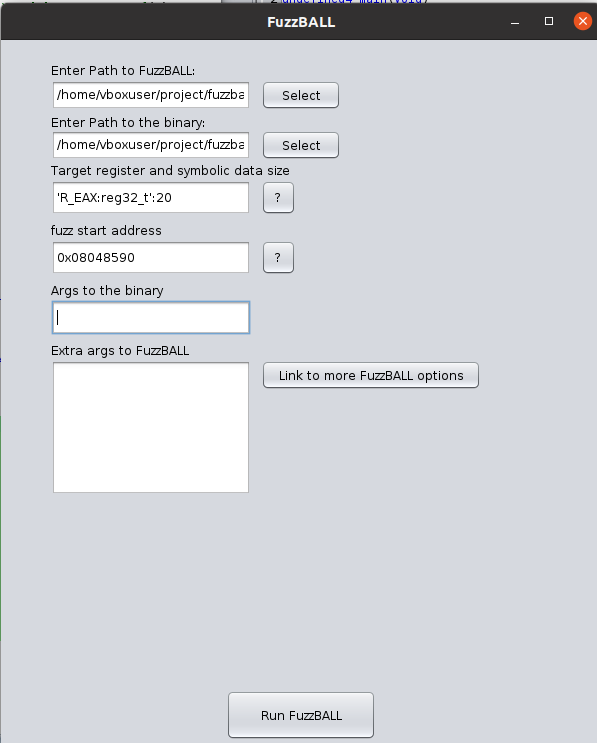

For the FuzzBALL Ghidra Script, you need to express the register where you intend to inject the symbolic value in Vine IL. For example, for EAX, use 'R_EAX:reg32_t' (or 'R_RAX:reg64_t' for RAX). Ensure the expression is enclosed in single quotes. (you can learn more about Vine here)

Along with the register information, you need to pass the size of symbolic value which will be an input to the binary. We are not sure how long the input needs to be, so I suggest you give a decent size value to start with (you don’t want something too short - it is okay to be larger that the actual input size the binary requires however it should not be shorter than that).

You also need to provide the script with the size of the symbolic value as an input to the binary. Start with a reasonable size, considering that it shouldn’t be too short. If uncertain, you can lean on the side of a larger size. The size should be passed in as 'R_EAX:reg32_t':20.

Additionally, you need to specify the start of the symbolic execution run, choosing a point where the chosen register is about to be used for the actual work. In this example, consider the instruction at 0x08048590.

Since the binary prompts for user input, no arguments need to be passed initially. You’ll interactively input values once a terminal pops up.

After providing input, the script should do its work:

After some time, it should reach the path where Password OK! is printed. Usually, for a CTF challenge, this would be a some kind of flag that you need to obtain.

Nice!

I hope this example serves as a helpful starting point!
